Cluster C1 (Instrument Panel) 26 Way
Cluster C1 (Instrument Panel) 26 Way

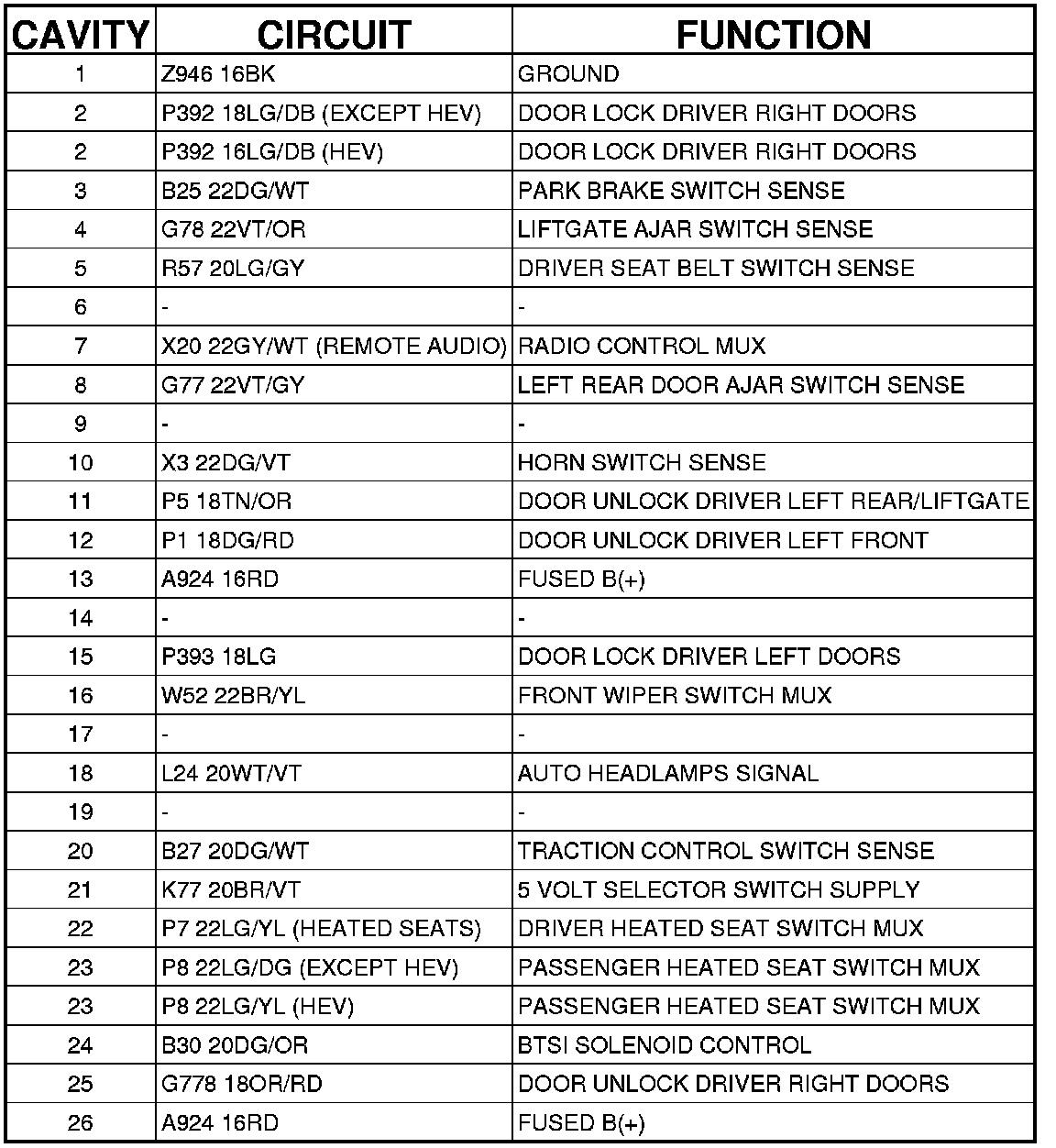

Connector C1 - (INSTRUMENT PANEL) 26 WAY
CLUSTER - (INSTRUMENT PANEL) 26 WAY
