Passenger Door Module C2 (Front Passenger Door) 20 Way

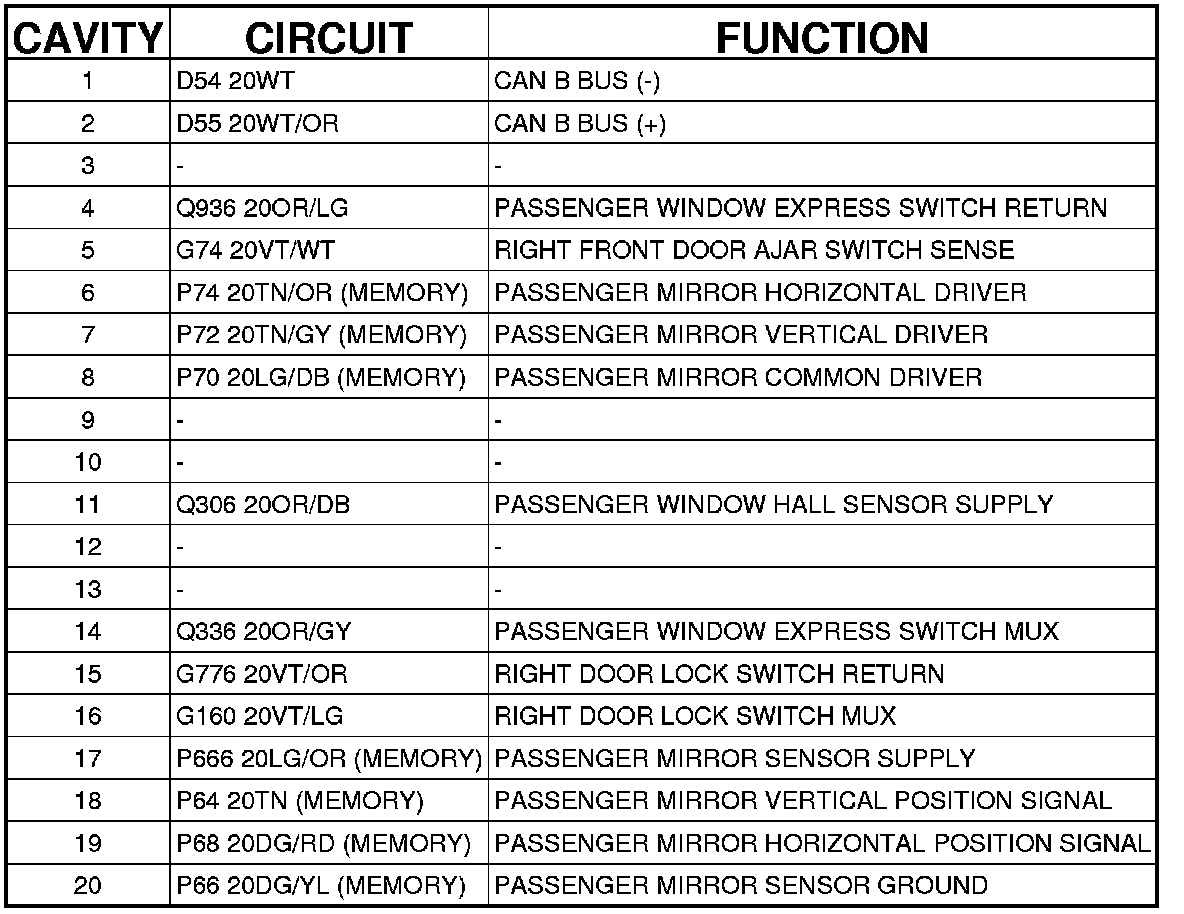

Connector C2 - (FRONT PASSENGER DOOR) 20 WAY




MODULE-DOOR-PASSENGER - (FRONT PASSENGER DOOR) 20 WAY
