C364 (Left Front Door Side) 16 Way
C364 (Left Front Door Side) 16 Way

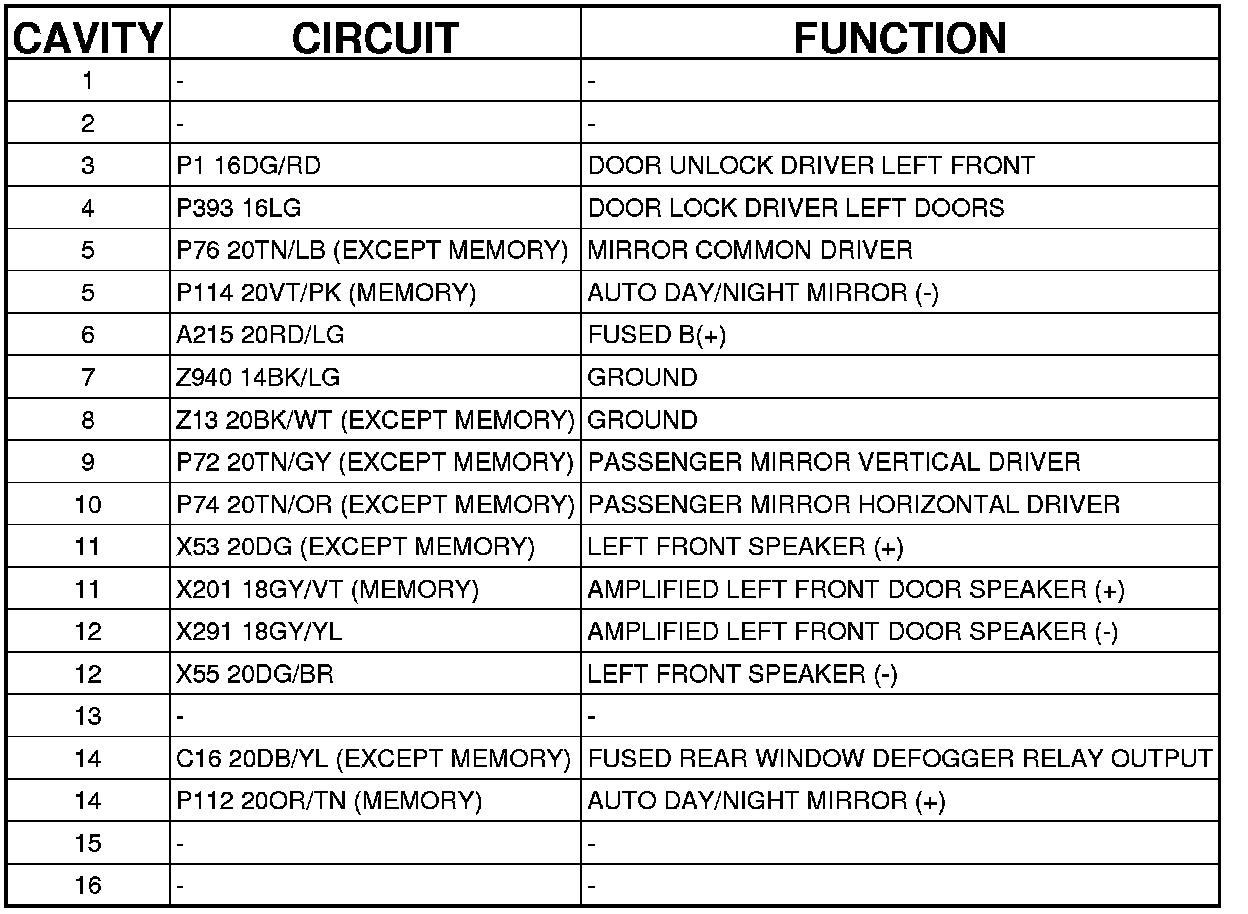

Connector - (LEFT FRONT DOOR SIDE) 16 WAY
C364 - (LEFT FRONT DOOR SIDE) 16 WAY
