C302 (Body Side) 12 Way
C302 (Body Side) 12 Way

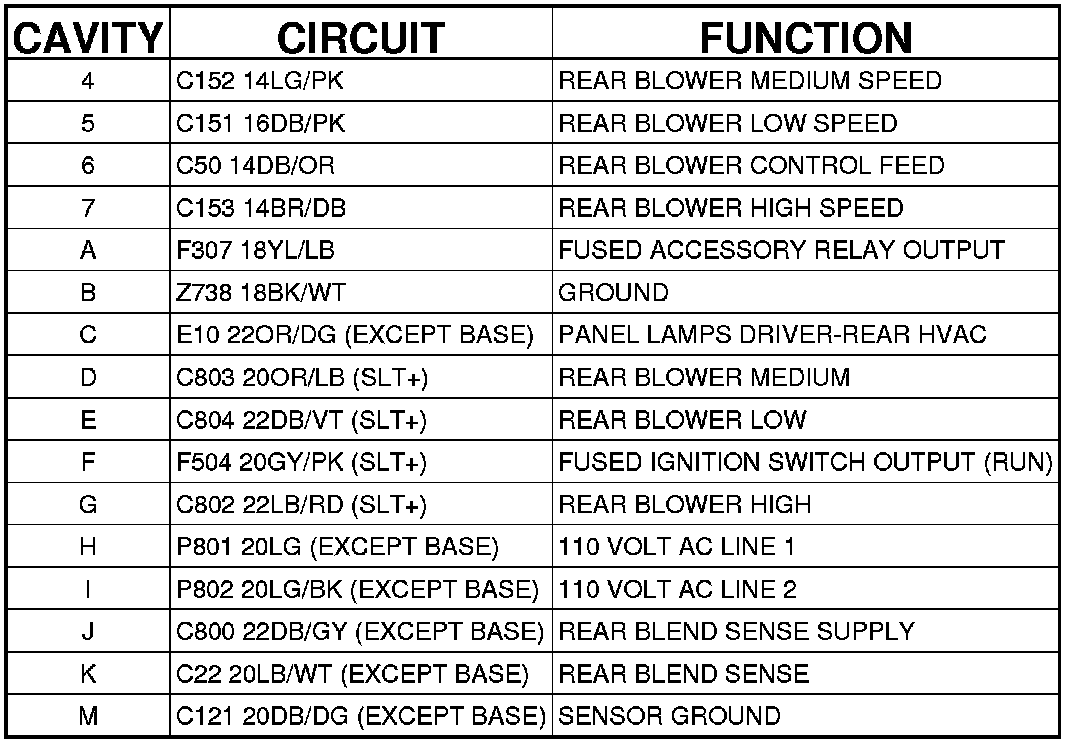

Connector - (BODY SIDE) 12 WAY
C302 - (BODY SIDE) 12 WAY
