C301 (Right Seat Side) 16 Way
C301 (Right Seat Side) 16 Way

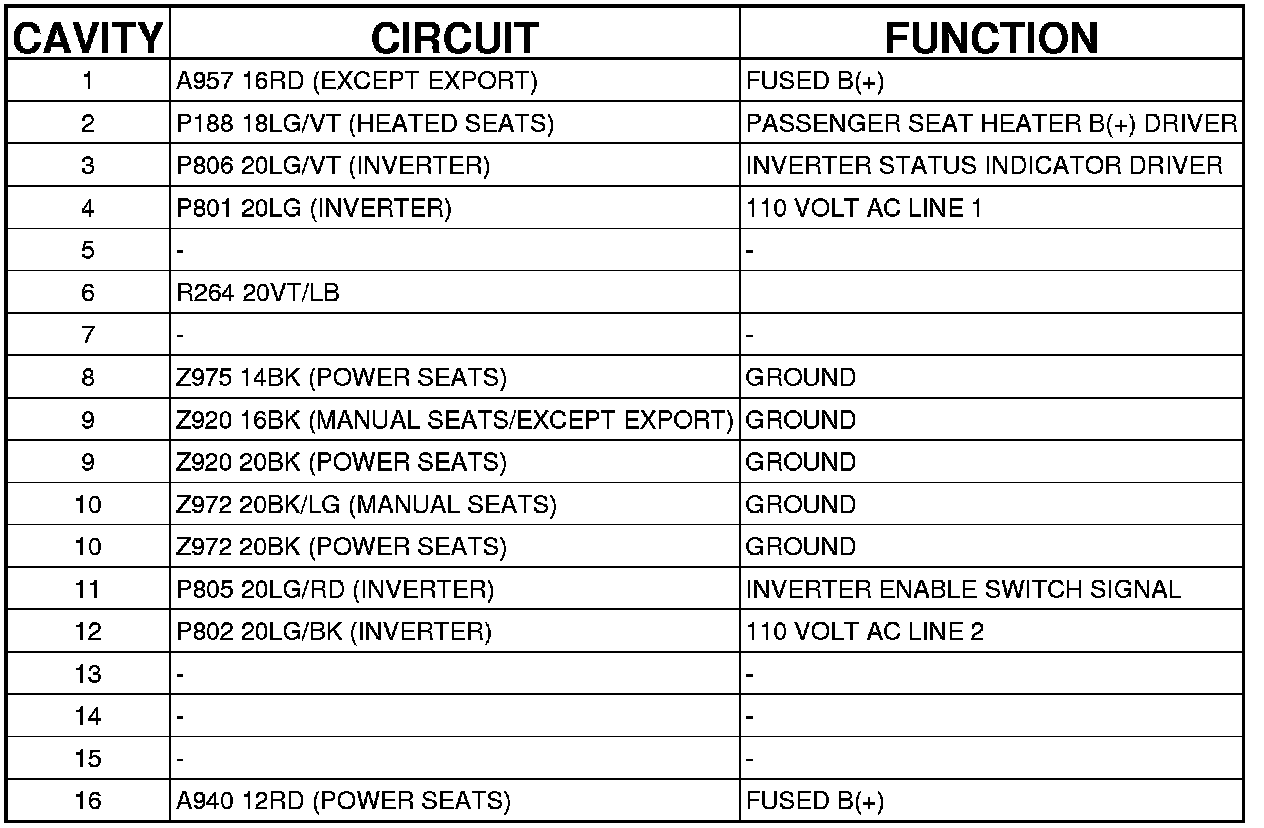

Connector - (RIGHT SEAT SIDE) 16 WAY
C301 - (RIGHT SEAT SIDE) 16 WAY
