C222 (Body Side) 20 Way
C222 (Body Side) 20 Way

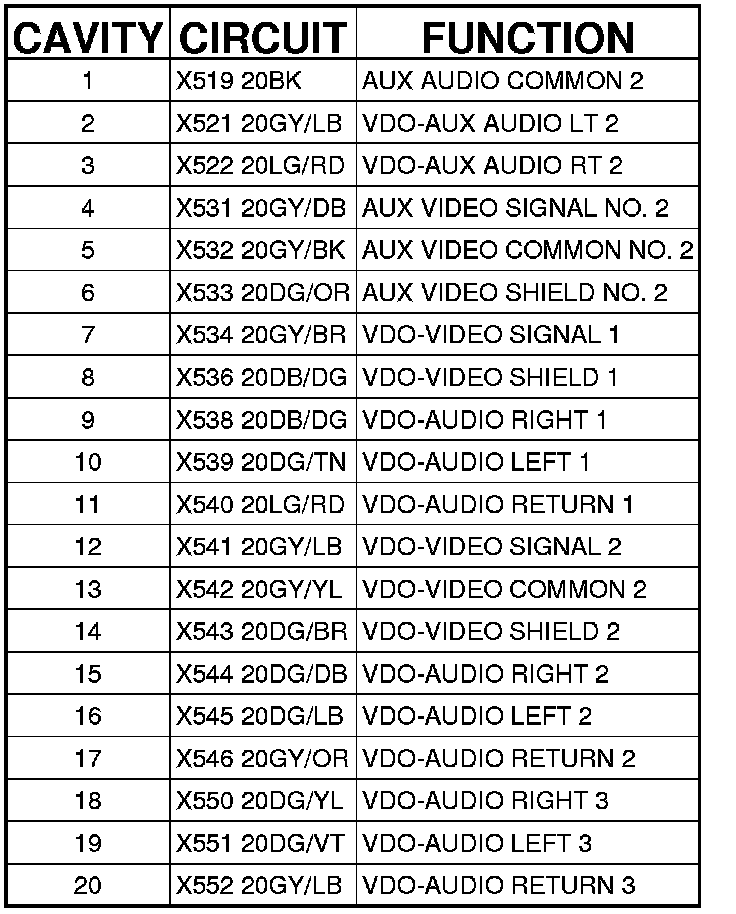

Connector - (BODY SIDE) 20 WAY
C222 - (BODY SIDE) 20 WAY
