C203 (Instrument Panel Side) 14 Way
C203 (Instrument Panel Side) 14 Way

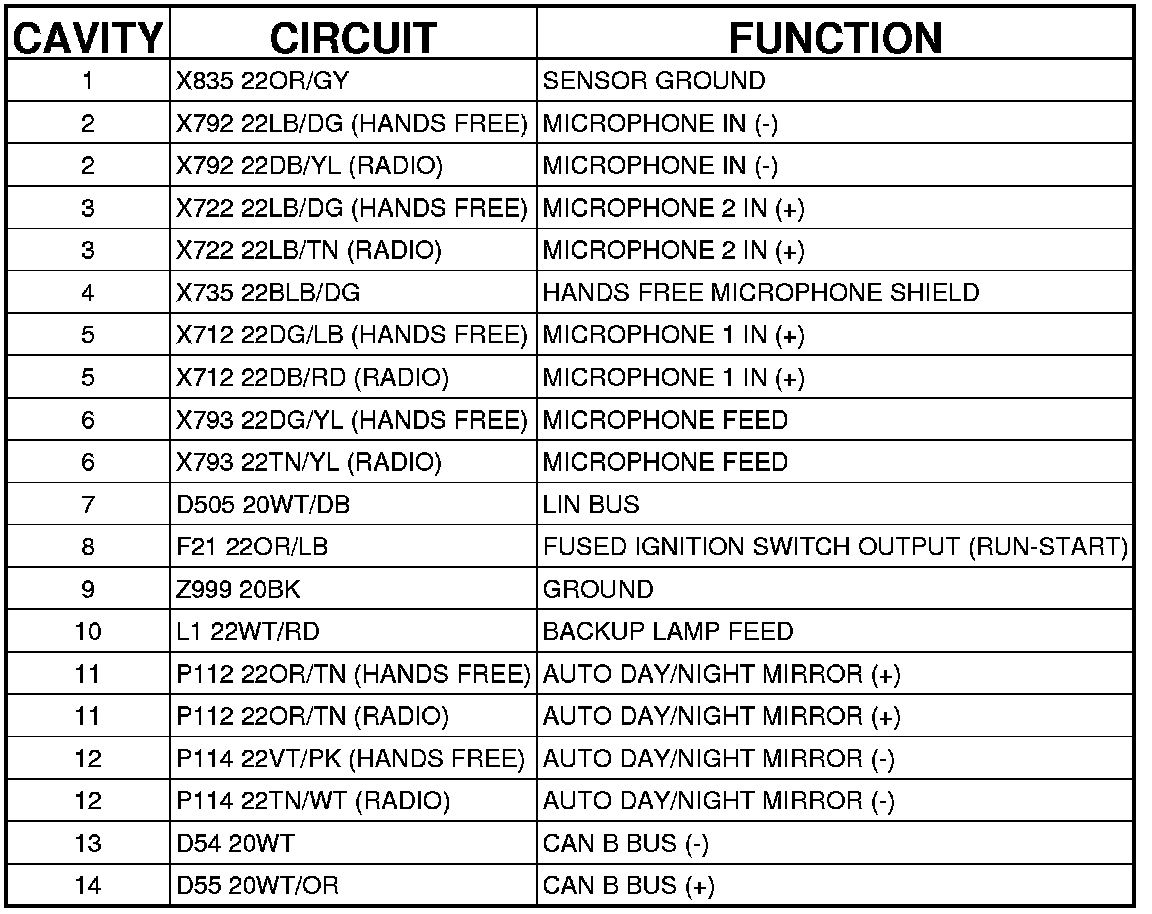

Connector - (INSTRUMENT PANEL SIDE) 14 WAY
C203 - (INSTRUMENT PANEL SIDE) 14 WAY
