C202 (Instrument Panel Side) 13 Way

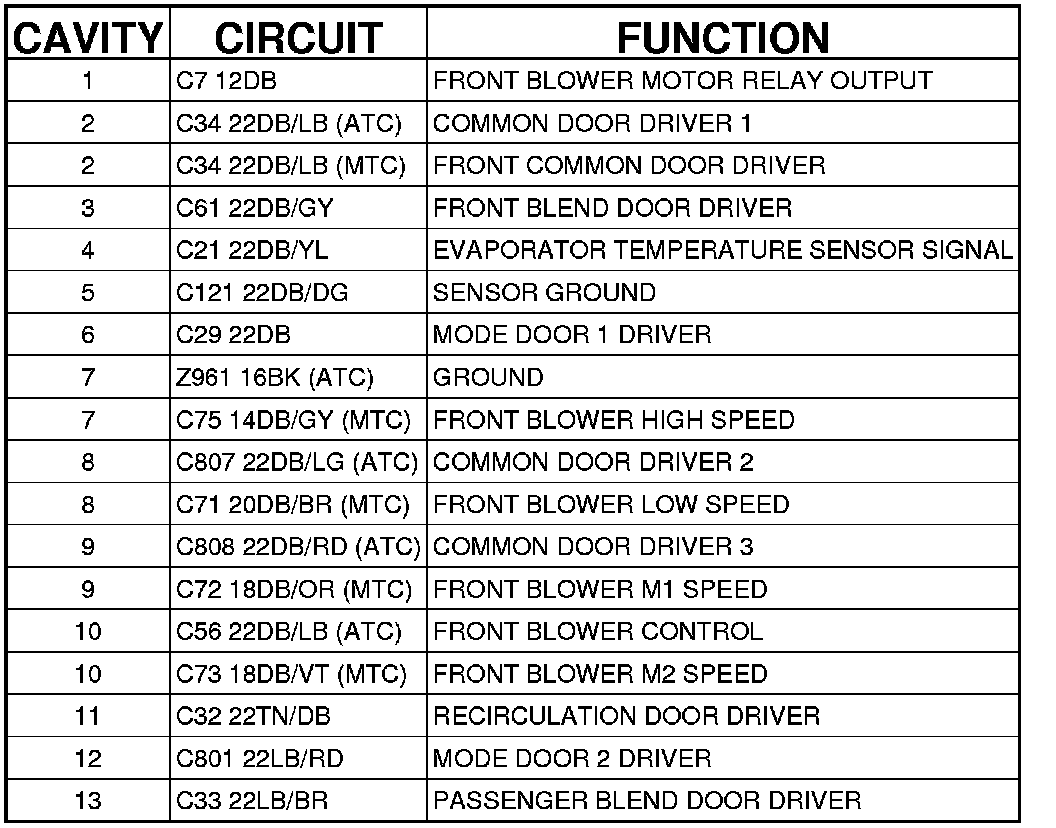

Connector - (INSTRUMENT PANEL SIDE) 13 WAY

C202 - (INSTRUMENT PANEL SIDE) 13 WAY
