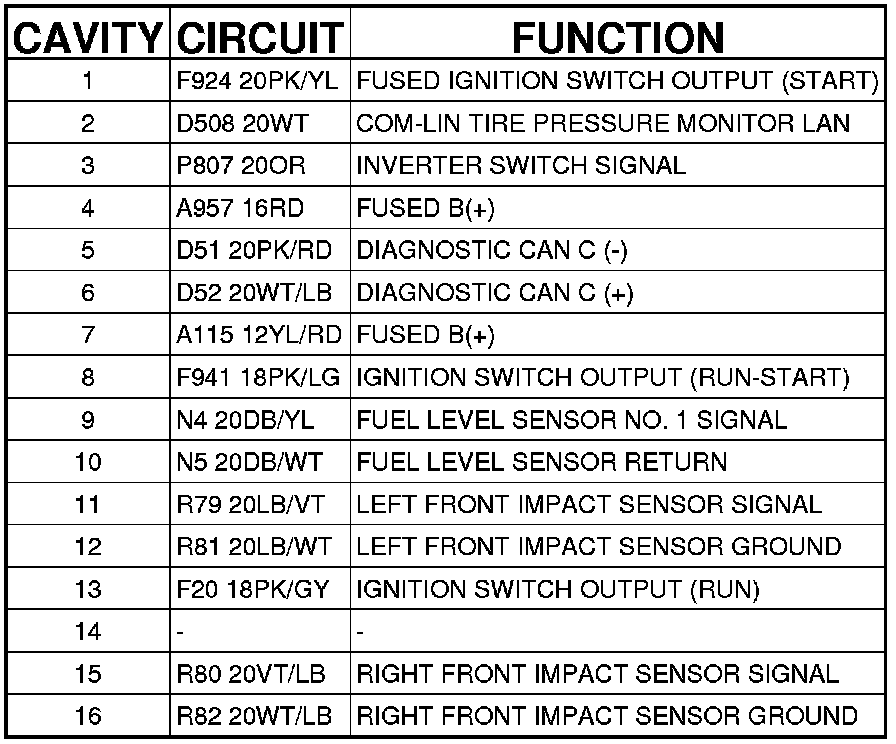

C201 (Headlamp And Dash Side) 16 Way
C201 (Headlamp And Dash Side) 16 Way
Connector - (
HEADLAMP
AND DASH SIDE) 16 WAY
C201 - (
HEADLAMP
AND DASH SIDE) 16 WAY
