C200 (Instrument Panel Side) 74 Way






Connector - (INSTRUMENT PANEL SIDE) 74 WAY

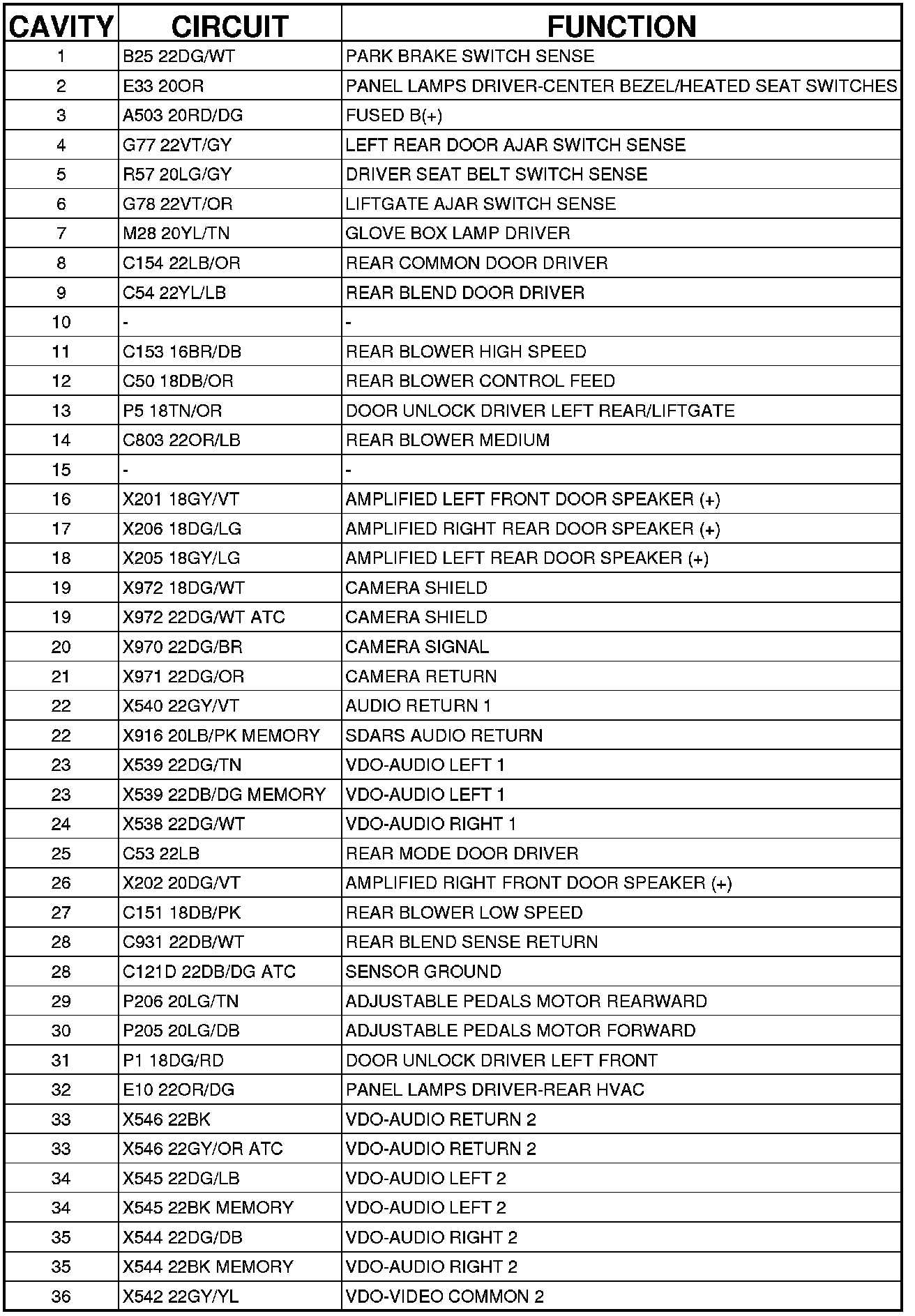

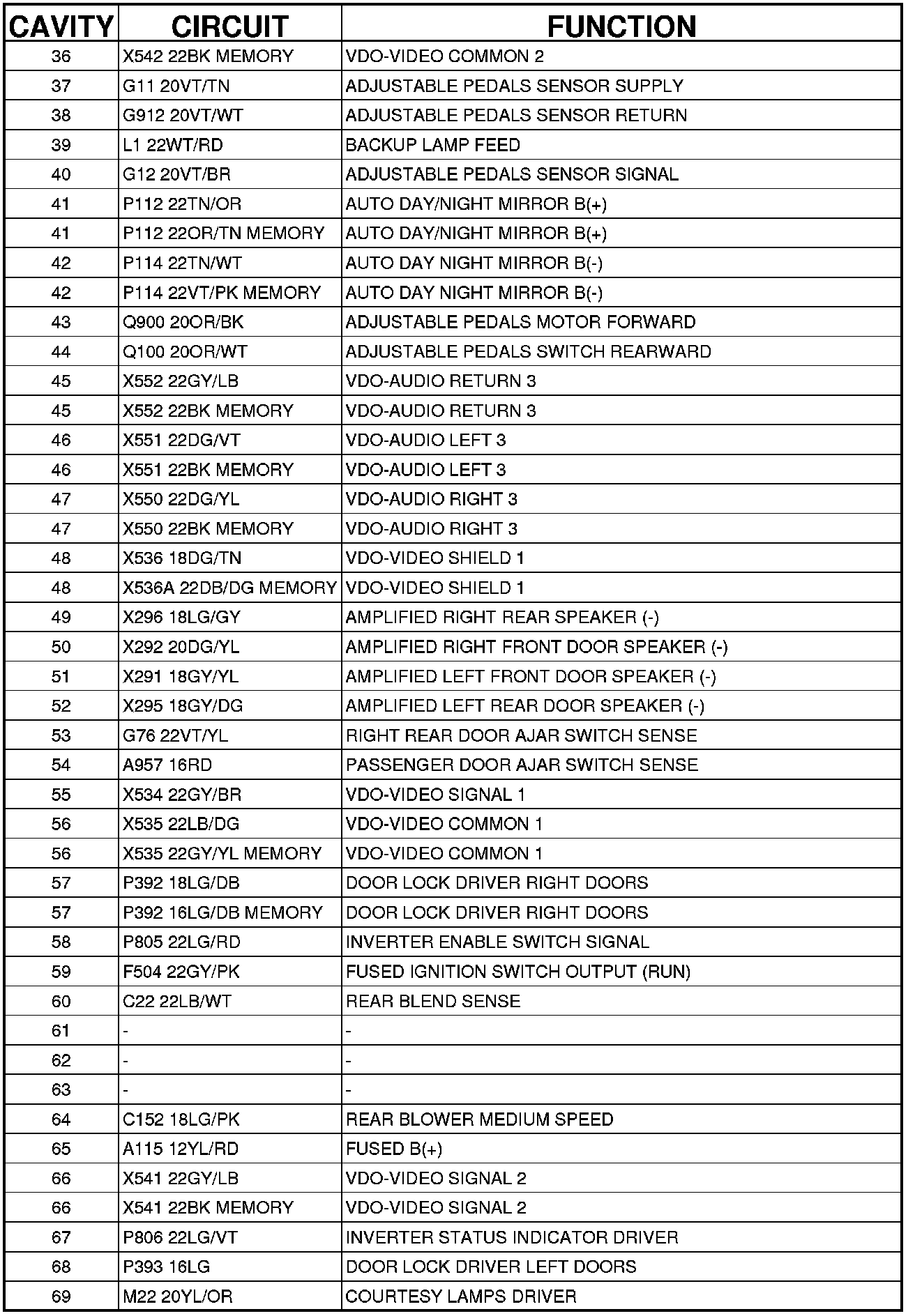

C200 - (INSTRUMENT PANEL SIDE) 74 WAY
