Travel Sensor - Removal

REMOVAL

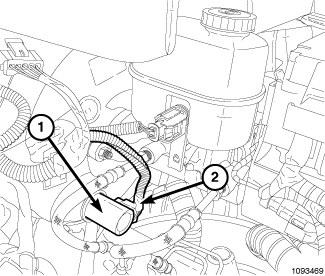

1. Disconnect the electrical connector (2) from the travel sensor (1).






NOTE: The retainer clip does not need to be removed, only pushed up slightly to disengage the tabs on the sensor.

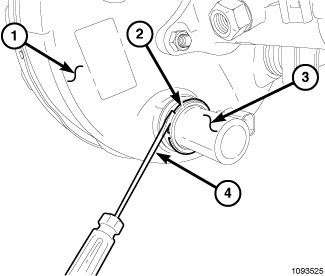

2. Using a small screw driver (4) or another suitable tool, push up on the retainer clip (2) and pull the travel sensor (3) from the power brake booster (1).
