Travel Sensor - Description






DESCRIPTION

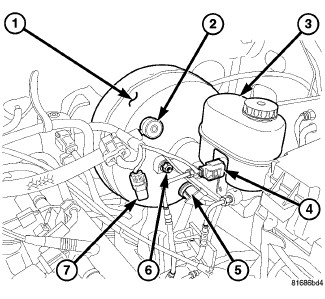

The travel sensor (7) is mounted on power brake booster (1) below and to the left of the master cylinder, and has one electrical connector.
