Removal

REMOVAL

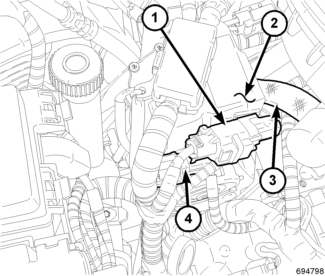

1. Disconnect the 12 volt battery system ground isolation connector (1), and remove connector from the bracket (2).
2. Remove the vacuum hose (3) from the electric vacuum pump.
3. Disconnect the electrical connector (4) from the electric vacuum pump.






NOTE: Before removal, observe the orientation of the two battery cables (3) to properly position during installation.

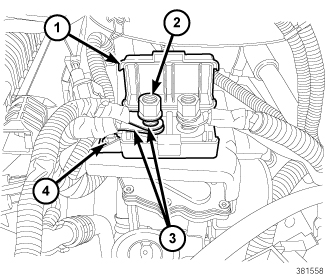

4. Lift the positive battery cable access cover (1) and remove the positive battery cable nut (2). Position the positive battery cables (3) aside for access.
5. Remove the battery cable junction block bolt (4) and position the battery cable junction block aside for access to remove the electric vacuum pump.






NOTE: The top bolt is through the pump with a nut on the back.

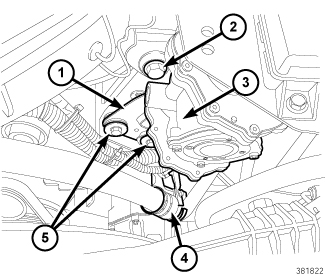

6. Remove the upper vacuum pump bracket bolt (2) and nut.
7. Remove the lower vacuum pump bracket bolts (5).
8. Remove and transfer any necessary components.
