Without ESP

WITHOUT ESP





1. Depress the brake pedal five times to deplete any vacuum that may remain in the booster unit.
2. Siphon and drain the fluid from the reservoir.
3. Remove the wiper arm (1) and cowl assembly Wiper Arm - Removal.





4. Remove the brake lamp switch and discard it.Do not reuse the stop lamp switch.Stop Lamp Switch - Removal.

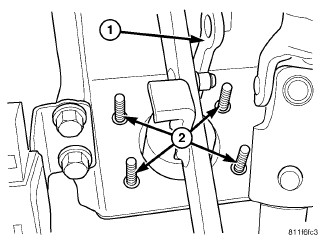

5. Remove clip securing booster push rod to brake pedal (1) Brake and/or Accelerator Pedals - Removal.
6. Remove the brake booster mounting nuts (2).





7. Disconnect the brake level electrical connector (4).





8. Disconnect the brake lines at the master cylinder.

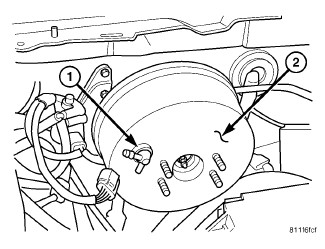

9. Disconnect vacuum line (1) at booster.





10. Remove master cylinder (1) from the mounting studs (2) on the power brake booster.

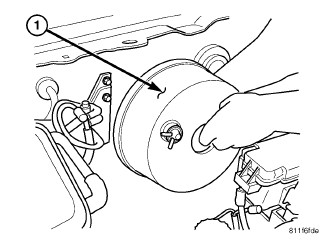

11. Remove the booster (1) and spacer block from front cowl panel.

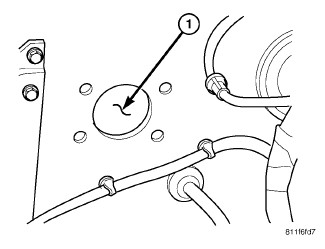

12. Wipe clean any debris from the brake booster cowl mounting hole (1).
