Removal

REMOVAL





1. Release the parking brake.
2. Raise the vehicle.
3. Loosen the cable tensioner nut at the equalizer (5) to create slack in the front cable.
4. Lower the vehicle.

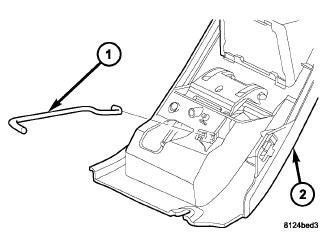

5. Remove the steering column opening cover (2), Steering Column Opening Cover - Removal.





6. Remove the steering column opening reinforcement (1).





7. Disconnect the brake lamp wire from the switch on the pedal assembly.
8. Roll the carpet back, loosen the front cable grommet from the floor pan and the cable retainer.
9. Disengage the release rod (1) from the arm on the pedal assembly.

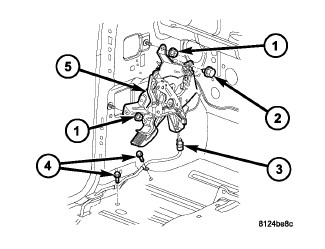

10. Remove the bolts (2) /nuts (1) from the pedal assembly (5) and remove the assembly.
