Rear Cable

REAR PARK BRAKE CABLE

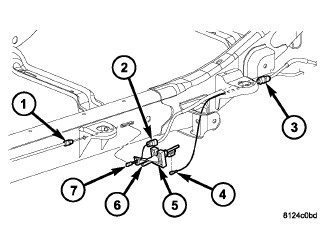

1. Raise and support the vehicle.
2. Lockout the parking brake cable (1).





3. Loosen cable adjuster nut (6).
4. Remove the rear park brake cable (5) from the intermediate park brake cable (1).
5. Compress tabs on cable end fitting (3) on the rear park brake cable (4) to the frame mount bracket. Then pull the cable through the bracket.





6. Disengage the park brake cable (2) from behind the rotor assembly.
7. Compress cable tabs on each cable end fitting at the brake cable support plate (1).
8. Remove the cables from the brake cable support plates.
