Left Rear Cable

LEFT REAR CABLE





1. Raise and support the vehicle.
2. Lockout the parking brake cable (1).
3. Loosen the brake cable at the equalizer and adjuster nut.
4. Remove the left cable from the front cable.
5. Remove the left cable from the equalizer.
6. Remove the cable from the frame bracket.

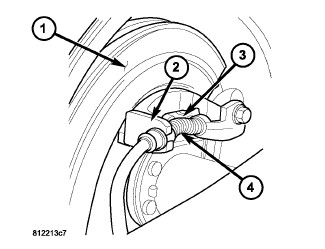

7. Remove the cable (4) from the axle bracket (2).
8. Remove the brake cable from the brake lever (3).
