Front Parking Brake Cable

FRONT PARKING BRAKE CABLE





1. Raise and support vehicle.
2. Lockout the parking brake cable (2).
3. Loosen adjusting nut (1) to create slack in front cable.
4. Remove the front cable from the cable connector.

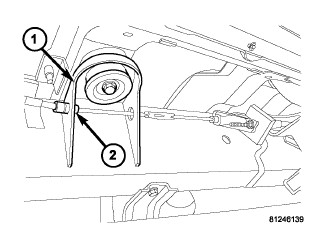

5. Compress cable end fitting at underbody bracket (1) and remove the cable (2) from the bracket.
6. Lower vehicle.





7. Push ball end of cable out of pedal clevis with small screwdriver.

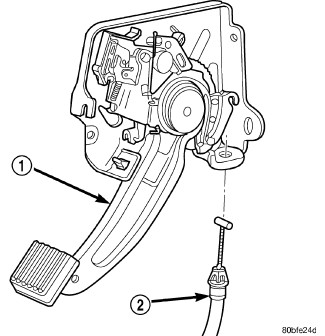

8. Compress cable end fitting (2) at the pedal bracket and remove the cable (1).
9. Remove the left cowl trim and sill plate.
10. Pull up the carpet and remove the cable from the body clip.

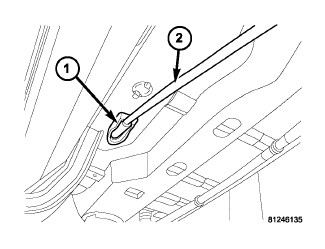

11. Pull up on the cable (2) and remove the cable with the body grommet (1).
