Brake Backing Plate - Installation

INSTALLATION

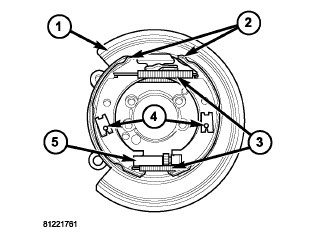

1. Install support plate (1) on axle flange. Tighten attaching bolts (3) to 64 Nm (47 ft. lbs.).
2. Install parking brake cable in the brake lever.
3. Install the park brake shoes (2)Installation.





4. Install axle shaft (1), Installation.
5. Adjust brake shoes to drum with brake gauge Adjustments.
6. Install the rotor Brake Rotor - Installation.
7. Install the caliper adapter Disc Brake Caliper Adapter - Installation.
8. Install the caliper Disc Brake Caliper - Installation.
9. Install the wheel and tire assembly Removal and Replacement.
