Brake Tube Junction Block - Installation

INSTALLATION

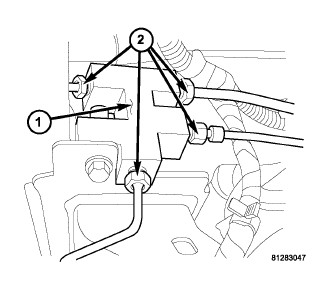

1. Position the junction block (1) on the bracket and install the mounting bolt. Tighten the mounting bolt to 19 Nm (170 in. lbs.).
2. Install the brake lines (2) into the junction block and tighten to 19 Nm (170 in. lbs.).
3. Bleed the base brake system, Service and Repair.
