Brake Master Cylinder Reservoir - Removal

REMOVAL





1. Install the prop rod on the brake pedal to keep pressure on the brake system.
2. Remove the reservoir cap (2) and siphon fluid into a drain container.

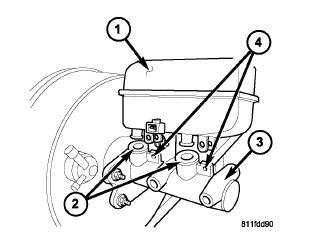

3. Disconnect the electrical connector (4) from the fluid level switch in the reservoir (1).

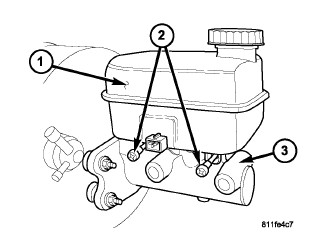

4. Remove the reservoir mounting bolts (2).





5. Remove the reservoir (1) from the master cylinder (3) by pulling upwards and to the side.

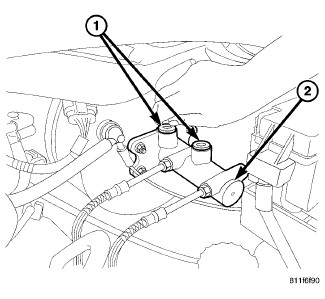

6. Remove old seals (1) from the cylinder body (2).
