Brake Master Cylinder Reservoir - Installation

INSTALLATION






CAUTION: Do not use any type of tool to install the seals. Tools may cut, or tear the seals creating a leak problem after installation. Install the seals using finger pressure only.

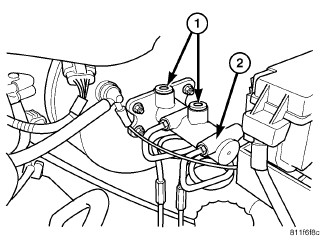

1. Lubricate the new seals (1) with clean brake fluid and Install new seals in cylinder body (2). Use finger pressure to install and seat seals.





2. Start the reservoir (1) in the seals (2). Then rock the reservoir (1) back and forth while pressing downward to seat it into the seals (2).





3. Install the mounting bolts (2) for the reservoir (1) to the master cylinder (3).





4. Reconnect the electrical connector (4) to the fluid reservoir level switch.
5. Remove the prop rod from the vehicle.
6. Fill and bleed base brake system,Service and Repair.
