Rear Brake Line

REAR BRAKE LINE

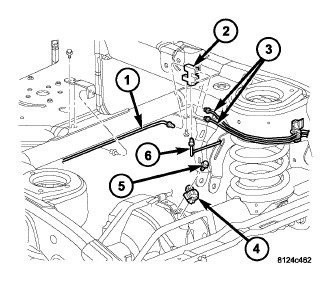

1. Install the line.

NOTE: If brake line (6) was replaced

2. Install the brake line (6) at the junction block (2) located at the frame.
3. Install the brake line (6) at the brake caliper hose.

NOTE: If brake line (1) was replaced

4. Install the brake line (1) at the junction block located at the frame.





5. Install the brake line (1) at the brake caliper hose (6).
6. Lower the vehicle and remove the support.
7. Remove the prop rod from the vehicle.
8. Bleed the area of repair for the brake system, If a proper pedal is not felt during bleeding an area of repair then a complete system bleed procedure must be performed.Service and Repair.
