Front Brake Hose

FRONT BRAKE HOSE

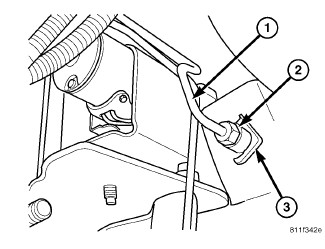

1. Install the brake hose (2) in position.

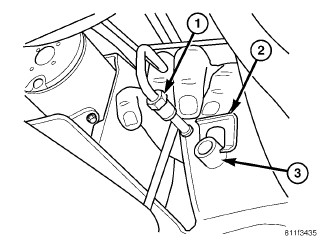

2. Install the retaining clip (2) for the brake hose (3) at the frame.

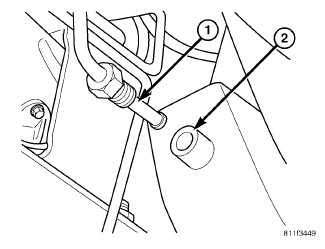

3. Install the brake line (1) into the brake hose (2) and tighten to 19 Nm (170 in.lbs).
4. Install the brake hose banjo bolt at the caliper and tighten to 18 Nm (155 in.lbs).
5. Remove the support and lower the vehicle.
6. Remove the prop rod from the vehicle.
7. Bleed the area of repair for the brake system, If a proper pedal is not felt during bleeding an area of repair then a complete system bleed procedure must be performed.Service and Repair.
