Disc Brake Caliper Adapter Mounting Bracket - Removal

REMOVAL





1. Remove wheel and tire assembly.

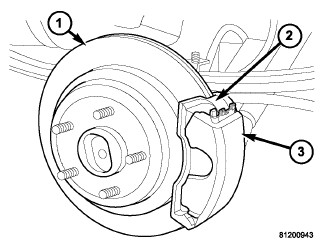

2. Remove the disc brake caliper (3) Disc Brake Caliper - Removal.
3. Remove the caliper adapter (2) Disc Brake Caliper Adapter - Removal.
4. Remove the rotor (1) Brake Rotor - Removal.

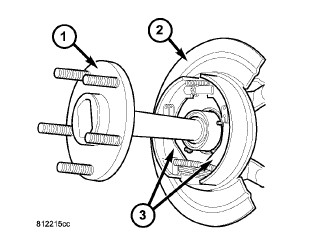

5. Remove the axle shaft (1) Removal.





6. Remove the park brake shoes (1) Removal.

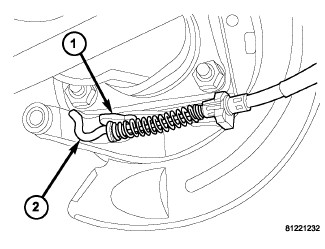

7. Remove the parking brake cable (2) from the brake lever (1).

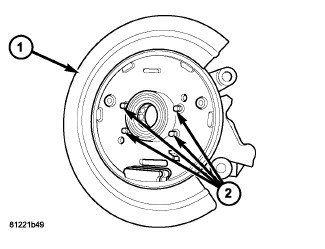

8. Remove the bolts (2) attaching the support plate to the axle and remove the support plate (1).

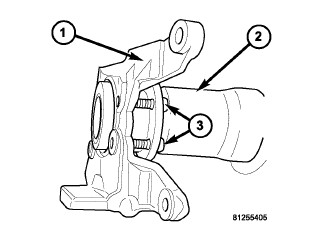

9. Remove the caliper adapter mount (1) from the axle housing (2).
