Brake Pads - Removal

REMOVAL





1. Raise and support vehicle.
2. Remove the wheel and tire assemblies.

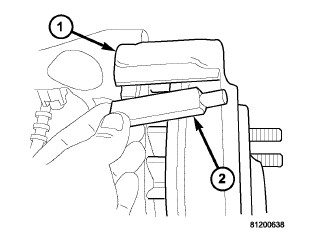

3. Compress the caliper.

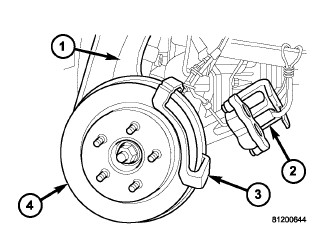

4. Remove the caliper, Disc Brake Caliper - Removal.

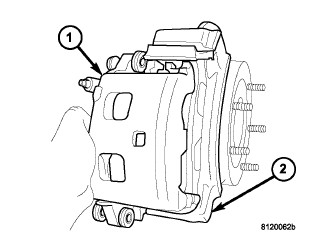

5. Remove the caliper by tilting the top up and off the caliper adapter.






NOTE: Do not allow brake hose to support caliper assembly.

6. Support and hang the caliper.

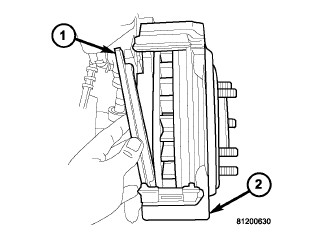

7. Remove the inboard brake shoe from the caliper adapter.

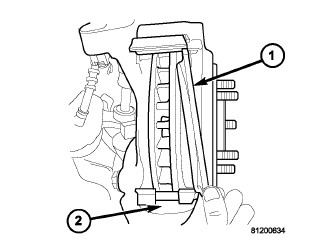

8. Remove the outboard brake shoe from the caliper adapter.






NOTE: Anti-rattle springs are not interchangeable.

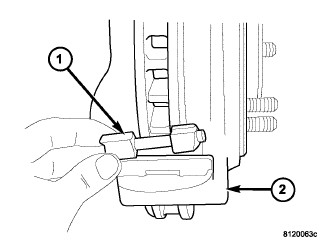

9. Remove the top anti-rattle springs from the caliper adapter.





10. Remove the bottom anti-rattle springs from the caliper adapter.
