Brake and/or Accelerator Pedals - Installation

WITHOUT 5.7L HEV






NOTE: The adjustable brake pedal can be serviced separately from the accelerator pedal and the bracket.

NOTE: When replacing the components both pedal assemblies must be in the fully down position toward the floor for proper adjustment, Pedals can be moved manually by rotating the cable on the component not being replaced. New components come in the correct position until activated.

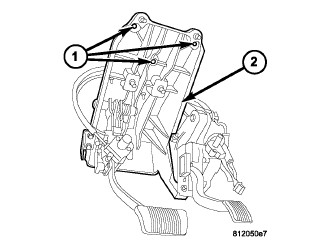

1. Install the pedal assembly (2) to the vehicle.
2. Install the mounting bolts (1) and tighten to 8 Nm (75 in. lbs.).
3. Push the booster back into the cowl.
4. Install the two bolts to the electrical bulkhead to the pedal bracket.
5. Reconnect the adjustable pedal assembly electrical connectors. Adjustable pedals only.

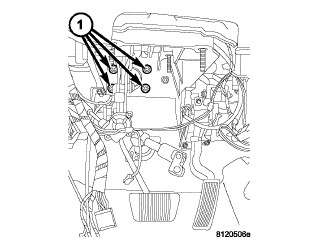

6. Install the booster mounting nuts (1) Tighten to 31 Nm (275 in. lbs.).

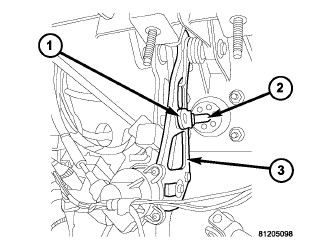

7. Reconnect the new booster push rod clip (1) and install the rod (2) to the pedal (3).





8. Install the steering column (2) to the vehicle.Steering Column - Installation.

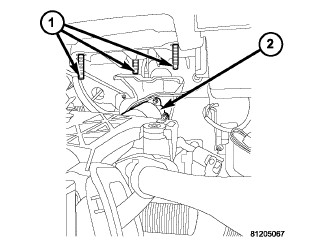

9. Raise the column (2) upwards on the mounting studs and then install the mounting nuts (1). Tighten to 28 Nm (250 in. lbs.).

CAUTION: Do not reuse the original stop lamp switch. Anytime a switch has been removed or its position compromised, a new switch must be installed and adjusted. Do not attempt to readjust the switch.

10. Install and adjust a NEW stop lamp switch. Stop Lamp Switch - Installation.

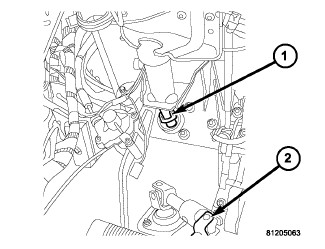

11. Install the upper coupling to the steering column (1) then install the pinch bolt to the upper coupling (2). Tighten to 38 Nm (28 ft. lbs.).
12. Install the steering column opening coverSteering Column Opening Cover - Removal.
13. Install the steering column opening cover reinforcement.
14. Install the upper and lower shrouds.
15. Reconnect the negative battery cable.
