Spare Tire Carrier Winch - Removal

REMOVAL

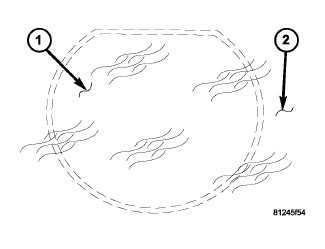

1. Pull up on the hole (1) cut in the carpet (2) to access the spare tire winch cover.

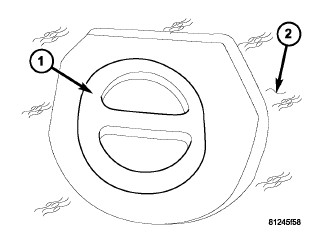

2. Remove the spare tire winch cover (1).

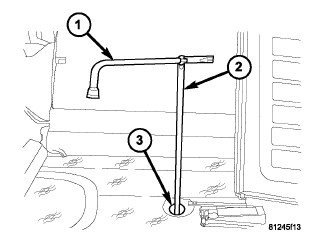

3. Install the jack handle (2) and lug wrench (1) to the spare tire winch (3) to loosen the spare tire to the ground.





4. Remove spare tire.

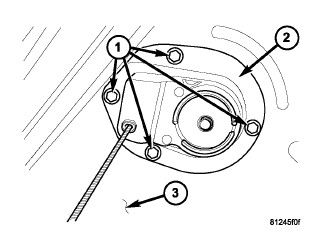

5. Remove 4 bolts (1) attaching spare tire winch (2) to body (3).
6. Separate spare tire winch from vehicle.
