Second Row

INSTALLATION

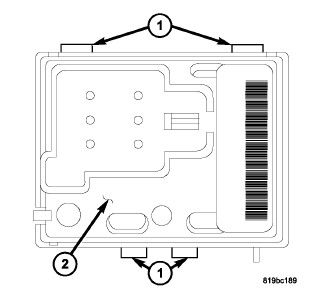

1. Align the tabs (1) of the switch/module (2) to the bezel and gently push together until the tabs are securely in place.

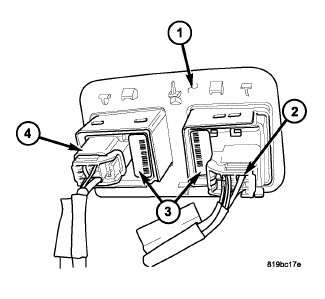

2. Connect the switch/module electrical connectors (2) and (4).





3. Gently push the heated seat switch/module bezel (1) into the mounting hole in the center console (3) until it is securely in place.
4. Connect the battery negative cable.
5. Verify heated seat system operation.
