Second Row

INSTALLATION

Center

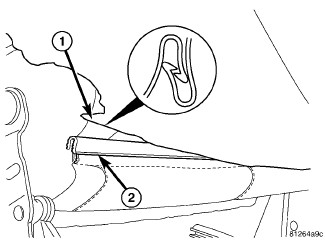

1. Connect the J-straps (1 and 2).

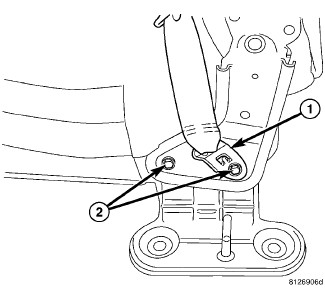

2. Install the seat belt anchor (1) and four cushion bolts (2).
3. Install the side shields.

Outer





1. Install the seat cushion/cover over the seat frame.

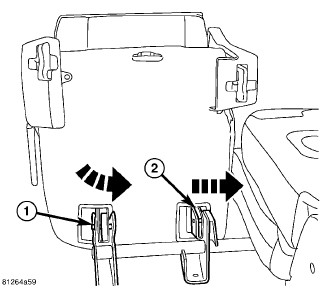

2. Position the seat cushion assembly into the vehicle and engage inboard hinge (2).
3. Rotate seat down and engage the outboard hinge (1).

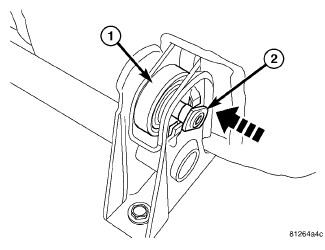

4. Insert the hinge spring (1) and insert the pin (2).

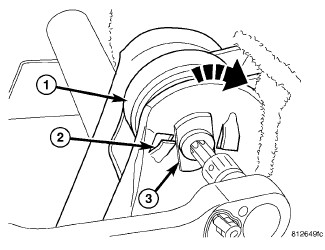

5. Turn the hinge pin (3) and engage the pin into the retaining tabs (2).

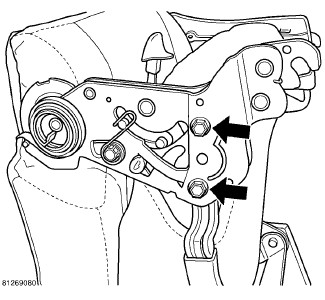

6. Install the inboard hinges and bolts.

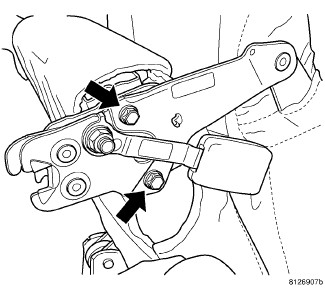

7. Install the connector tube/outboard hinge assembly into the seat cushion and install the bolts.
8. Install the seat back assembly. Seat - Installation.
