Sunroof Glass - Removal
REMOVAL

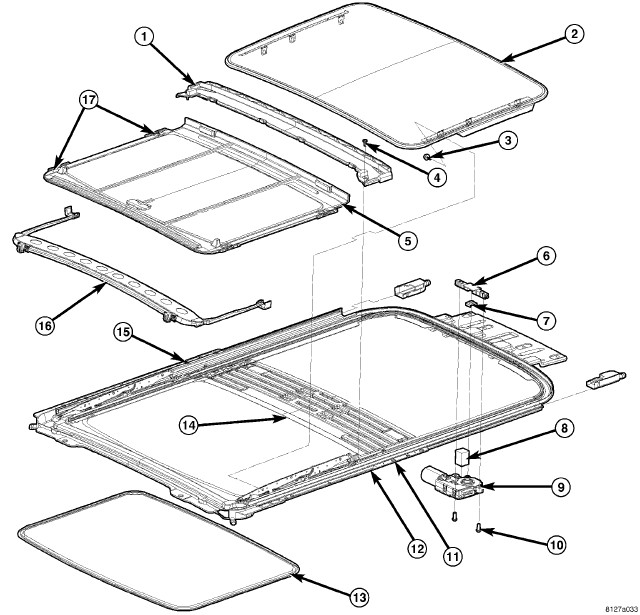

1. Move the glass panel (2) to the vent position.
2. Slide sunshade (5) rearward to the open position.
3. Remove the glass panel screws (3).
4. Lift off glass panel (2) and remove from vehicle.
REMOVAL
1. Move the glass panel (2) to the vent position.
2. Slide sunshade (5) rearward to the open position.
3. Remove the glass panel screws (3).
4. Lift off glass panel (2) and remove from vehicle.
