Sunroof / Moonroof Motor: Adjustments

ADJUSTMENT






CAUTION: There is no adjustment available for a normally operating sunroof. This procedure is used to set sunroof motor to sunroof assembly timing before the motor is installed in the assembly.

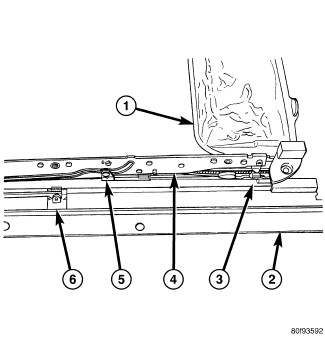

1. Manually push the sunroof guide assembly (4) to the full forward position until it is locked into position. This is verified by attempting to push the guide assembly rearward.






NOTE: The guide rail (2) will be raised above the U-frame assembly (4) when in the lock position.

2. Remove the sunroof glass Sunroof Glass - Removal.

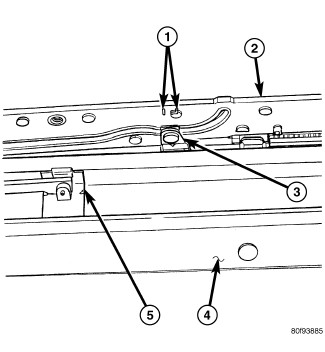

3. Manually move the guide pivot (3) inside the guide cam slot until it is centered between the etched timing marks (1) on both rails on both the left hand and right hand side rails.

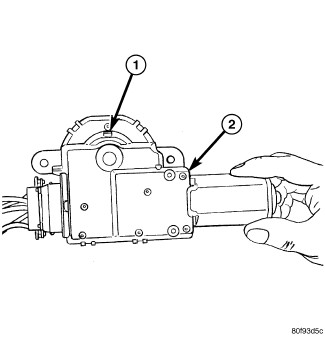

4. Verify that the white marking is visible in the new motor window (1). If the mark is not visible, connect a power source to the motor and cycle the 'close' button until the motor is in the closed position (indicated by the white mark in the window).
5. Install the sunroof motor and verify proper sunroof operation Sunroof Motor - Installation.
6. Install the sunroof glass, leaving the retaining bolts loose.
7. Install the sunroof assembly into the vehicle Sunroof Glass - Installation.
8. Flush the sunroof glass into the vehicle roof opening and check sunroof glass alignment Adjustments.
