Sunroof Drain Tube - Removal

REMOVAL

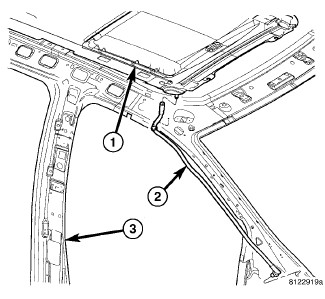

FRONT HOSES





1. Move glass panel to the fully closed position.
2. Disconnect negative battery cable.
3. Remove headliner Headliner - Removal.
4. Disconnect the drain hose from the sunroof housing (1).
5. Drain any liquid from hose connection.





6. Remove tube (2), as necessary.

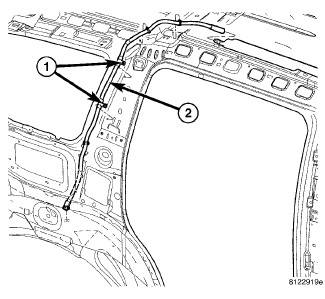

REAR HOUSING HOSE





1. Move glass panel to the fully closed position.
2. Disconnect negative battery cable.
3. Remove headliner Headliner - Removal.
4. Disconnect the drain hose from the sunroof housing (1).
5. Drain any liquid from hose connection, if necessary.





6. Release the push pin fasteners (1) and remove the tube (2).
