Sunroof Sunshade - Installation

INSTALLATION

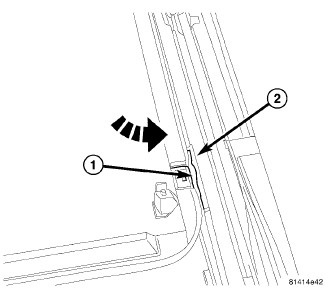

1. Place one side of the sunshade (1) spring feet clips into the top track U-frame (2).

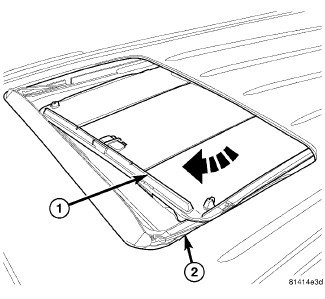

2. Depress the both releasing clips (1) on the other side to allow them to go into the top track of the U-frame (2).
3. Move sunshade to the open position.
4. Verify that the sunshade moves back and forth properly.
5. Cycle sunroof towards the closed position.
6. Position the sunshade so that the handle is in the center of the opening.
7. Install the water channel. Sunroof Drain Channel - Installation
