Radiator Upper Crossmember - Removal

REMOVAL





1. Raise hood.
2. Remove the front hood seal.
3. Remove the center brace mounting nuts and remove hood latch.

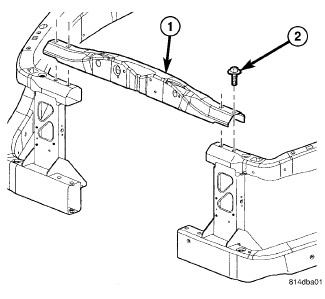

4. Remove the crossmember mounting bolts (2).
5. Remove crossmember (1).
