Home >> Dodge and Ram >> 2009 >> Durango 4WD V8-4.7L >> Repair and Diagnosis >> Body and Frame >> Mirrors >> Diagrams >> Connector Views >> Passenger Outside Rearview Mirror (Front Passenger Door) 12 Way

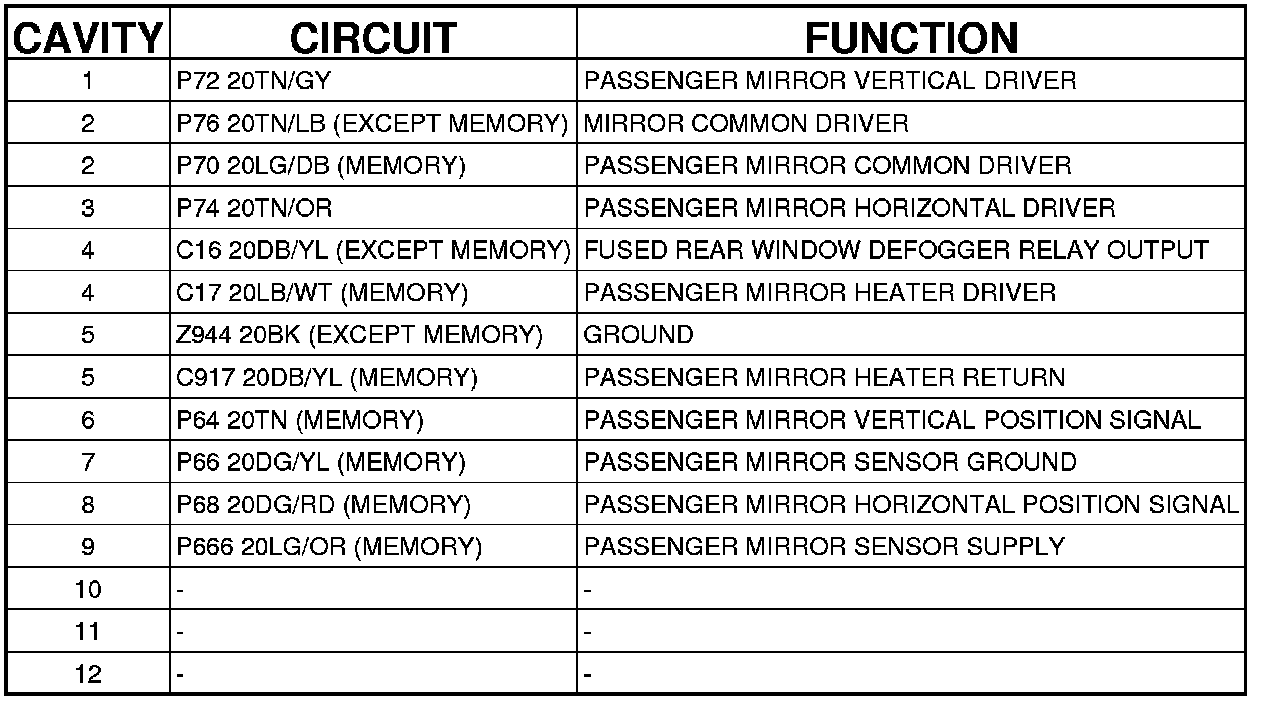

Passenger Outside Rearview Mirror (Front Passenger Door) 12 Way






Connector - (FRONT PASSENGER DOOR) 12 WAY




MIRROR-OUTSIDE REARVIEW-PASSENGER - (FRONT PASSENGER DOOR) 12 WAY
