Driver Outside Rearview Mirror (Front Driver Door) 12 Way

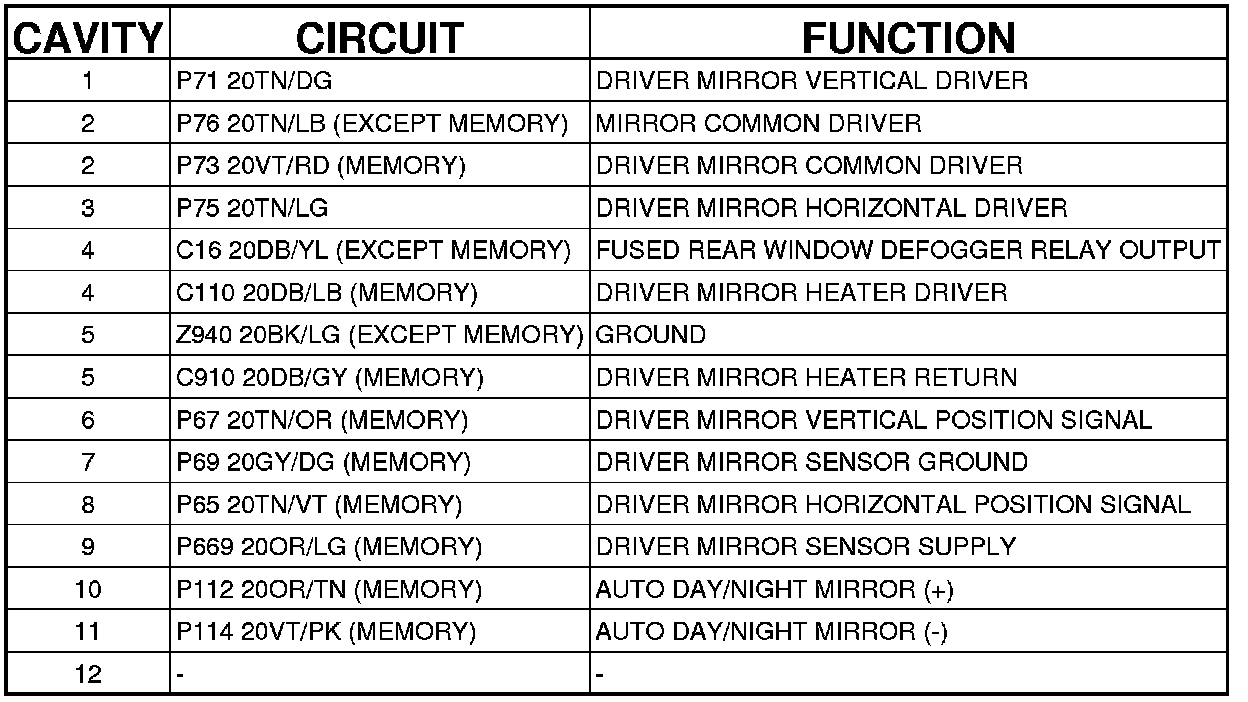

Connector - (FRONT DRIVER DOOR) 12 WAY




MIRROR-OUTSIDE REARVIEW-DRIVER - (FRONT DRIVER DOOR) 12 WAY
