Installation

INSTALLATION

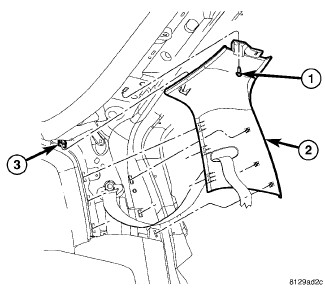

1. Position the seat belt through the hole in the D-pillar trim (2).
2. Position the D-pillar trim (2) in place on the D-pillar and anchor (3).
3. Seat the retaining clips fully and install the screw (1).
4. Position the rear header trim in place and seat the retaining clips fully.

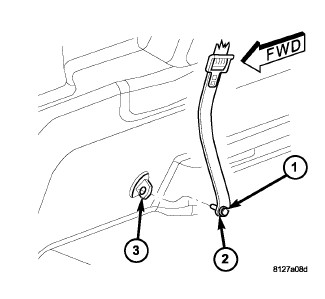

5. Position the seat belt lower anchor (2) to the tapping plate (3) on the quarter inner panel.
6. Install the screw (1) securing the lower anchor to the tapping plate and tighten the to 39 Nm (29 ft. lbs.).
7. Install the third row seat if necessary. Seat - Installation
