C-Pillar Trim Panel-Installation

INSTALLATION

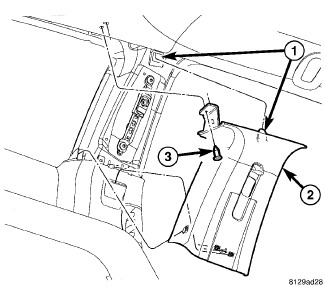

1. Position the upper trim panel tab (1) into the C-pillar and seat the lower side of the trim fully.
2. Install the screw (3).





3. Position the seat belt turning loop (4) to the height adjuster (1).
4. Install the screw (3) and tighten the to 39 Nm (29 ft. lbs.).

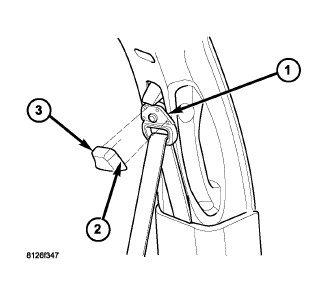

5. Engage the tab (2) on the lower edge of the trim cover (3) in the slot below the screw in the turning loop (1). Then press the upper edge of the trim cover over the top of the turning loop until it snaps into place.
