B-Pillar Trim Panel-Removal

REMOVAL

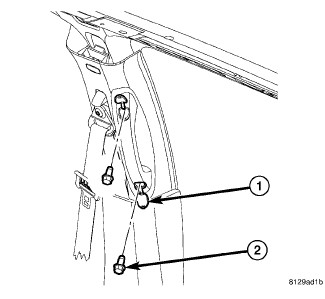

1. Using a small flat bladed tool or equivalent open the trim plugs (1) in the grab handle and remove the bolts (2).

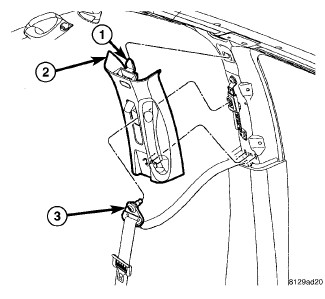

2. Remove the shoulder belt anchor bolt (3) and separate the upper trim panel (2) at the bottom and off the hook (1) at the top.





3. Using a trim stick C-4755 or equivalent, remove the door sill scuff plates. Description and Operation

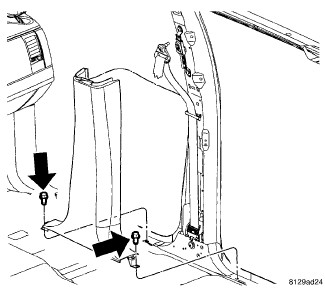

4. Remove the bolts and remove the lower B-pillar trim.
