Upper

INSTALLATION

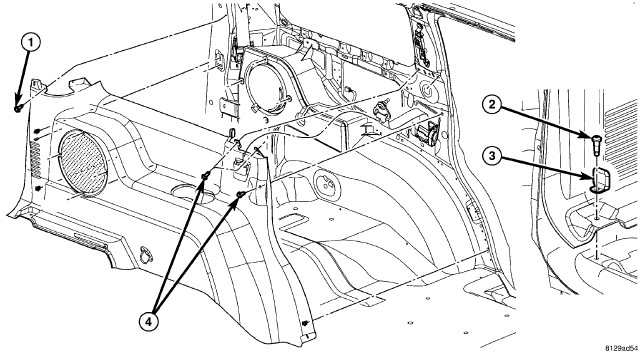

1. Connect the power outlet electrical connector, if equipped.
2. Position the trim panel onto the quarter panel and seat the retaining clips fully.
3. Install the three forward screws (4).
4. Install the rear screw (1).
5. Install the tie down (3) and tie down anchor bolt (2).
6. Tighten the bolt to 12 Nm (9 ft. lbs.)
7. Install the C-pillar trim. C-Pillar Trim Panel-Installation
