Fuel Tank
INSTALLATION

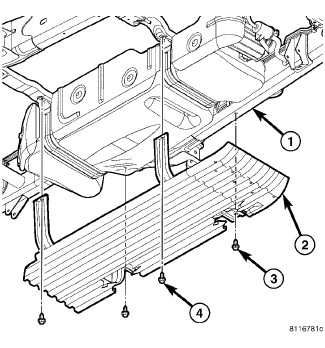

1. Position and support skid plate under fuel tank.
2. Install inboard bolts and tighten to 41 Nm (30 ft. lbs.).
3. Install bolts attaching skid plate to frame side rail and tighten to 37 Nm (27 ft. lbs.).
INSTALLATION
1. Position and support skid plate under fuel tank.
2. Install inboard bolts and tighten to 41 Nm (30 ft. lbs.).
3. Install bolts attaching skid plate to frame side rail and tighten to 37 Nm (27 ft. lbs.).
