Power Liftgate Drive Unit - Installation

INSTALLATION






WARNING: Never attempt to operate the power liftgate system when the link rod is removed or disconnected. Damage to the power liftgate system will result.

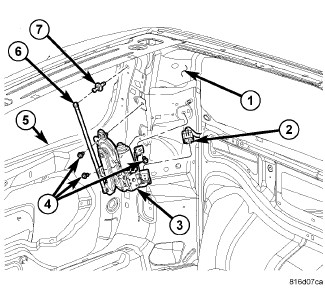

1. Install the power liftgate drive unit assembly (3) onto the D-pillar (1).
2. Install the drive unit retaining bolts (4). Torque the bolts to 39 Nm (28.5 ft. lbs.).
3. Connect the wire harness connector (2) to drive unit assembly (3).
4. Install the left rear D-pillar (1) trim panel on the vehicle, Installation.
5. Install the link rod assembly (6) onto the liftgate attachment point (7). Power Liftgate Link Rod - Installation for the appropriate procedure.
6. Connect the battery negative cable.
7. Using an appropriate scan tool, check and erase any power liftgate control module diagnostic trouble codes.
8. Perform the power liftgate learn cycle, Programming and Relearning.
9. Verify power liftgate system operation.
