Procedures

STANDARD PROCEDURE

Power Liftgate

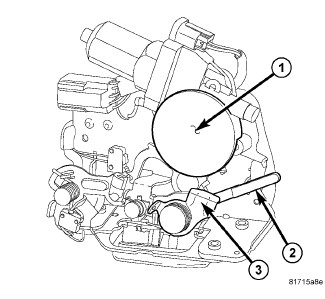

1. To manually open a power liftgate, Programming and Relearning.

NOTE: The liftgate may be opened manually by raising the latch release lever in the event the liftgate latch assembly becomes inoperative.

2. Remove the access door from the middle of the lower liftgate trim panel.

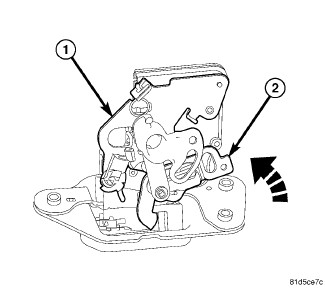

3. Reaching around to the back of the latch assembly (1), raise the latch release lever (2).

Manual Liftgate





NOTE: The liftgate may be opened manually by raising the latch release lever (2) in the event the liftgate latch assembly becomes inoperative.

1. Remove the access door from the middle of the lower liftgate trim panel.
2. Reaching around to the back of the latch assembly (1), raise the latch release lever (2).
