Liftgate Trim Panel - Removal

REMOVAL

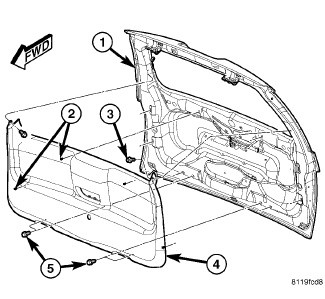

1. Using a trim stick C-4829A or equivalent, separate the pushpin fasteners and remove the upper trim panel (2).





2. Remove the two upper screws (3) and the four lower screws (5).
3. Remove the lower trim panel (4) and disconnect the electrical connector.
