Hood Latch - Installation

INSTALLATION

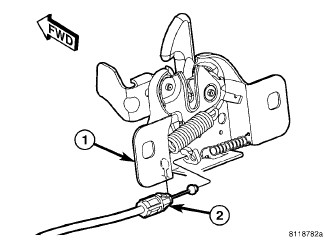

1. Connect release cable (2) to the hood latch (1).





2. Install the latch (4) lining up the marks made previously and install the bolts (3).
3. Tighten the bolts to 11 Nm (8 ft. lbs.).
4. Close hood and adjust latch as necessary. Adjustments
