Hood Release Cable - Installation

INSTALLATION






NOTE: If replacement hood latch is also being installed, ensure that it is thoroughly lubricated.

1. From inside the vehicle, pull/route the hood release cable through the dash panel hole and into the engine compartment.
2. Install the hood release handle (2) and install the screws (5).
3. Install the cable grommet in the dash panel hole.

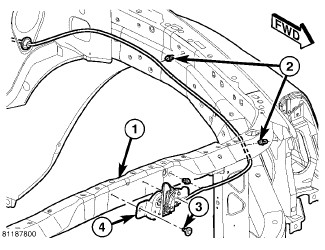

4. Attach the retainer clip (4) to the release cable and install.





5. Attach the retainer clips (2) to the release cable and install them into the holes in the engine compartment.
6. Install hood latch. Hood Latch - Installation

7. Install the wheelhouse splash shield and install the rivets. Description and Operation
8. Install the left headlamp unit, Front Lamp Unit - Installation.
9. Install the grille. Grille - Installation
