Rear Fascia Support Bracket - Removal






REMOVAL





1. Remove the fascia. Rear Bumper Fascia - Removal

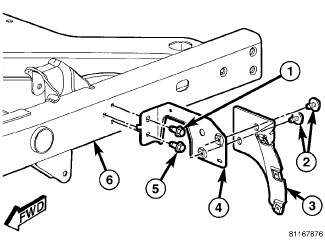

2. Remove the bolts (1), (2) and (5) and remove the brackets (3) and (4).
