Front Bumper Fascia - Removal

REMOVAL

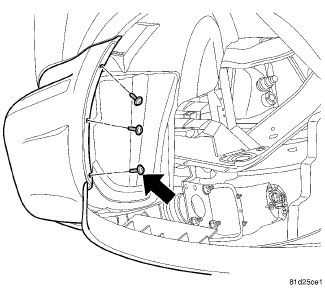

1. Remove the wheel well splash shield screws.

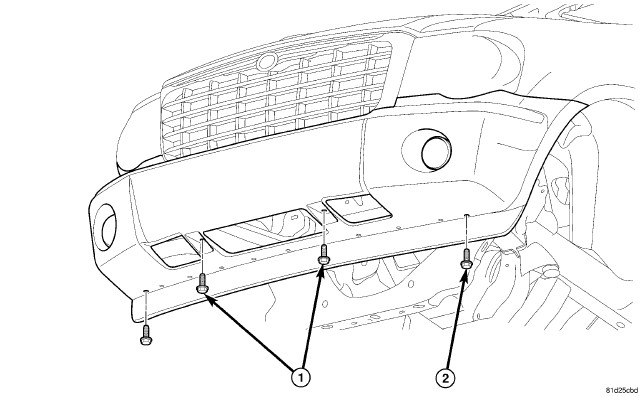

2. Remove the two impact beam screws (1).
3. Remove the two air dam to wheel liner screws (2).





4. Disconnect the fog lamp electrical connectors, if equipped.
5. Remove the fender screws (5).

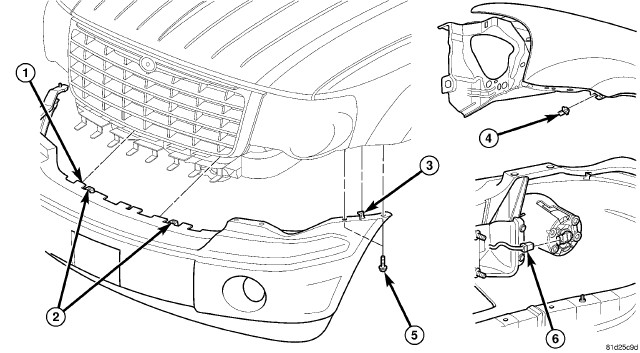

6. Release the upper tabs (1) and remove the fascia.
