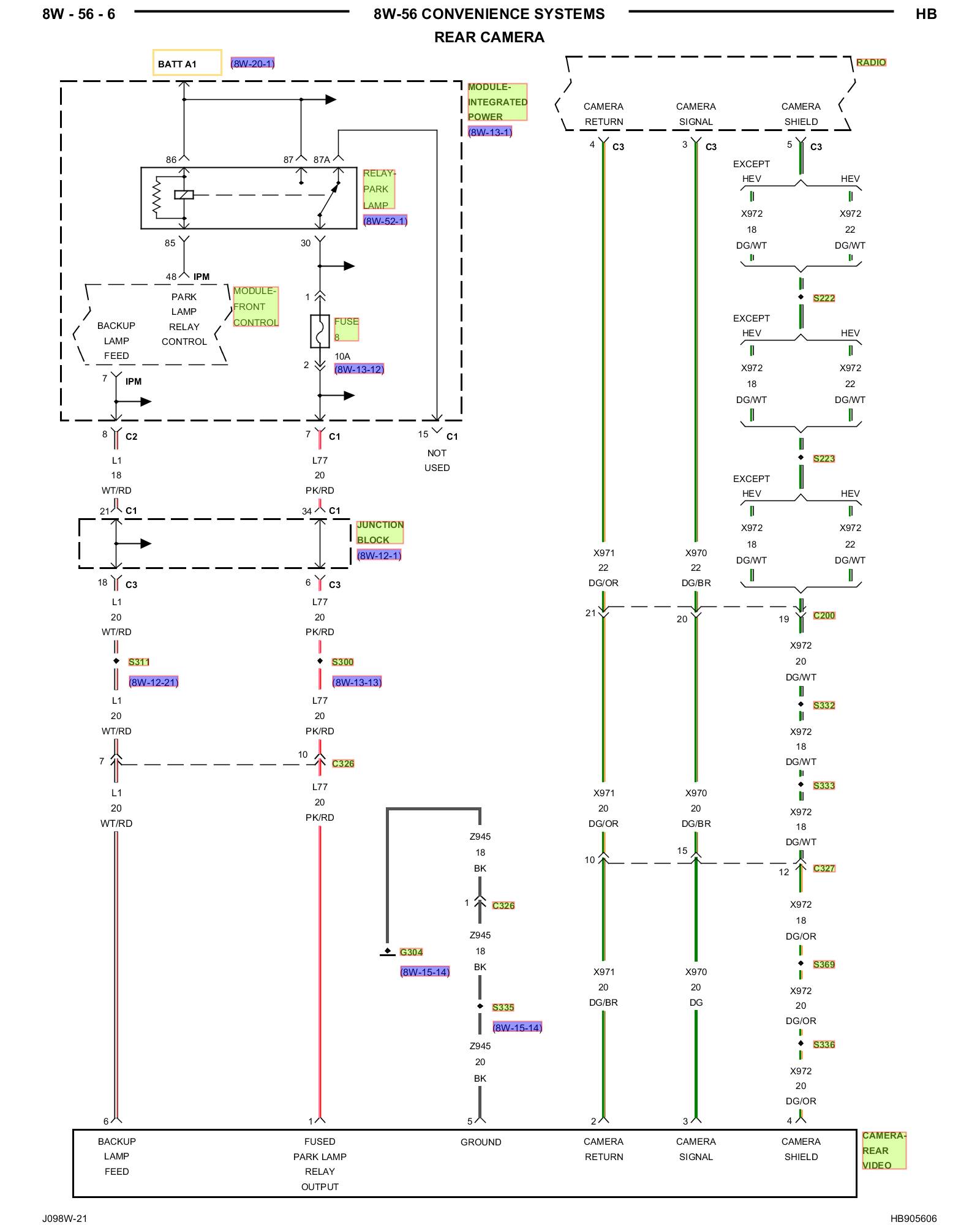

Convenience Systems 8W-56-06 (Rear Camera)

CONVENIENCE SYSTEMS - Diagram 06 (REAR CAMERA)
PLEASE NOTE: Some diagrams may appear to be missing because of gaps in the number sequences. These "gaps" are actually for diagrams that do not apply to the vehicle model selected.





Previous Diagram Convenience Systems 8W-56-05 (Park Assist)

Other Diagrams: Other diagrams referred to by number (i.e. 8W-70-2, etc.) within these diagrams can be found at the vehicle level under Diagrams by Number Diagrams By Number
